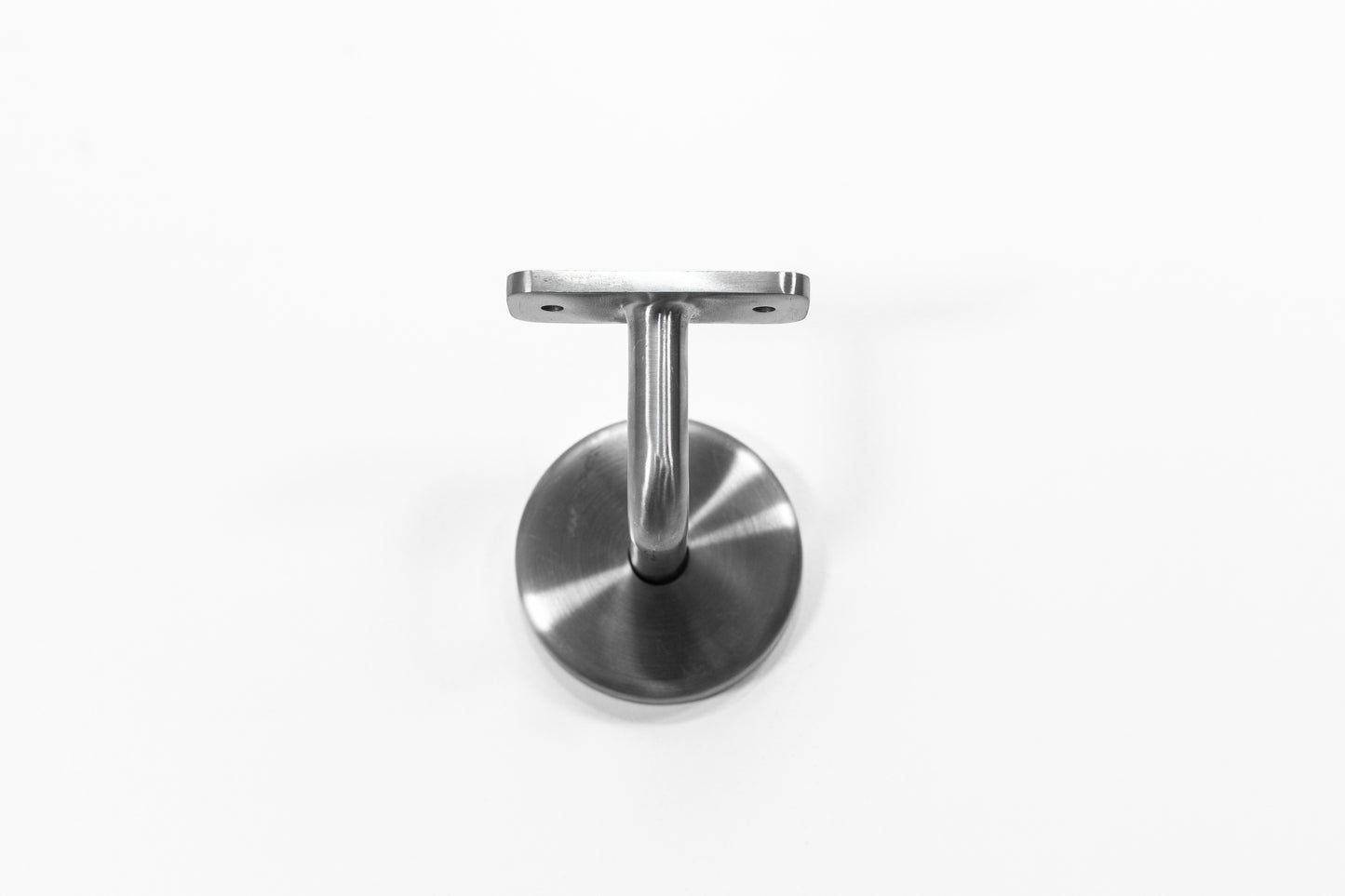

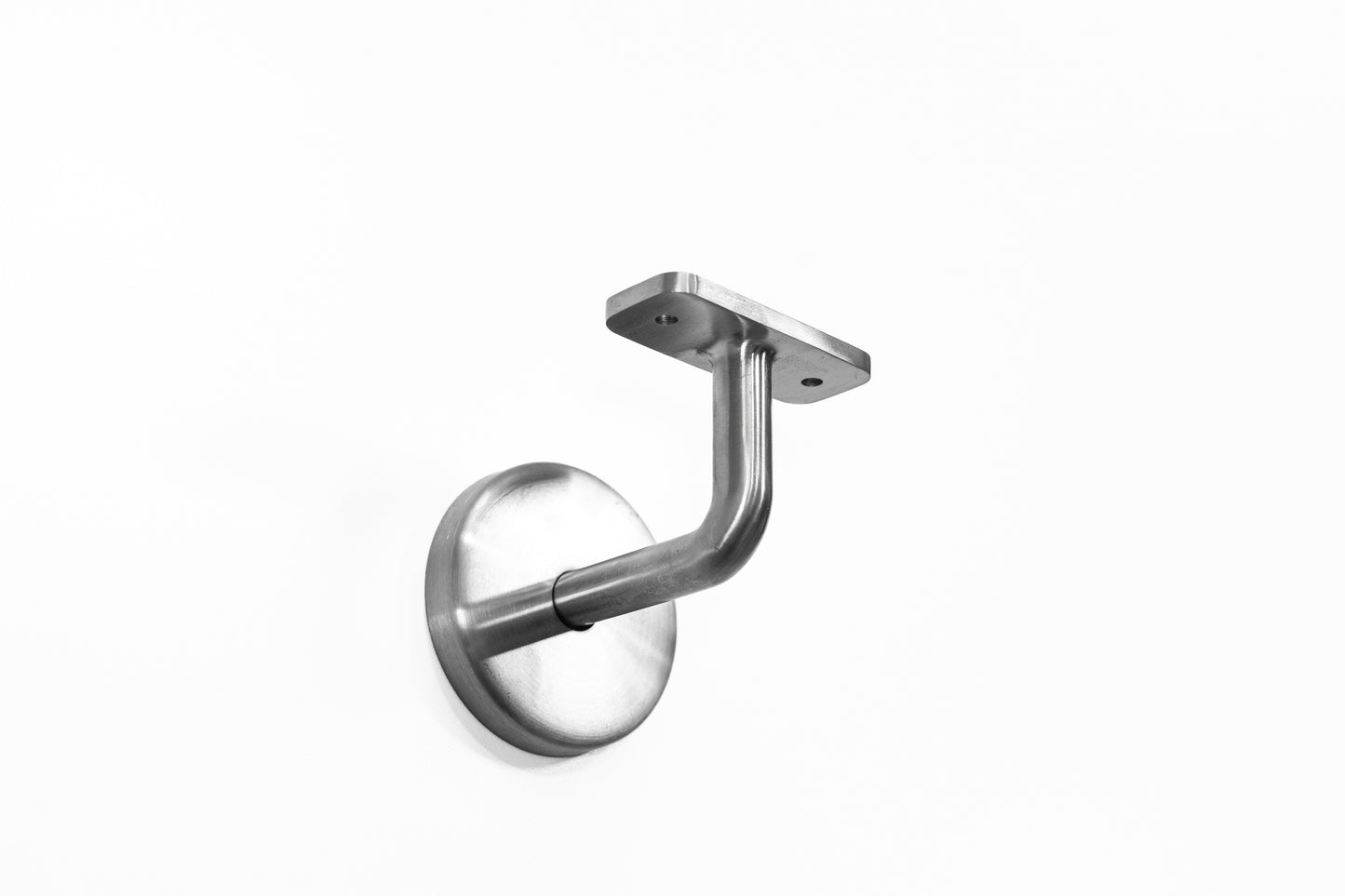

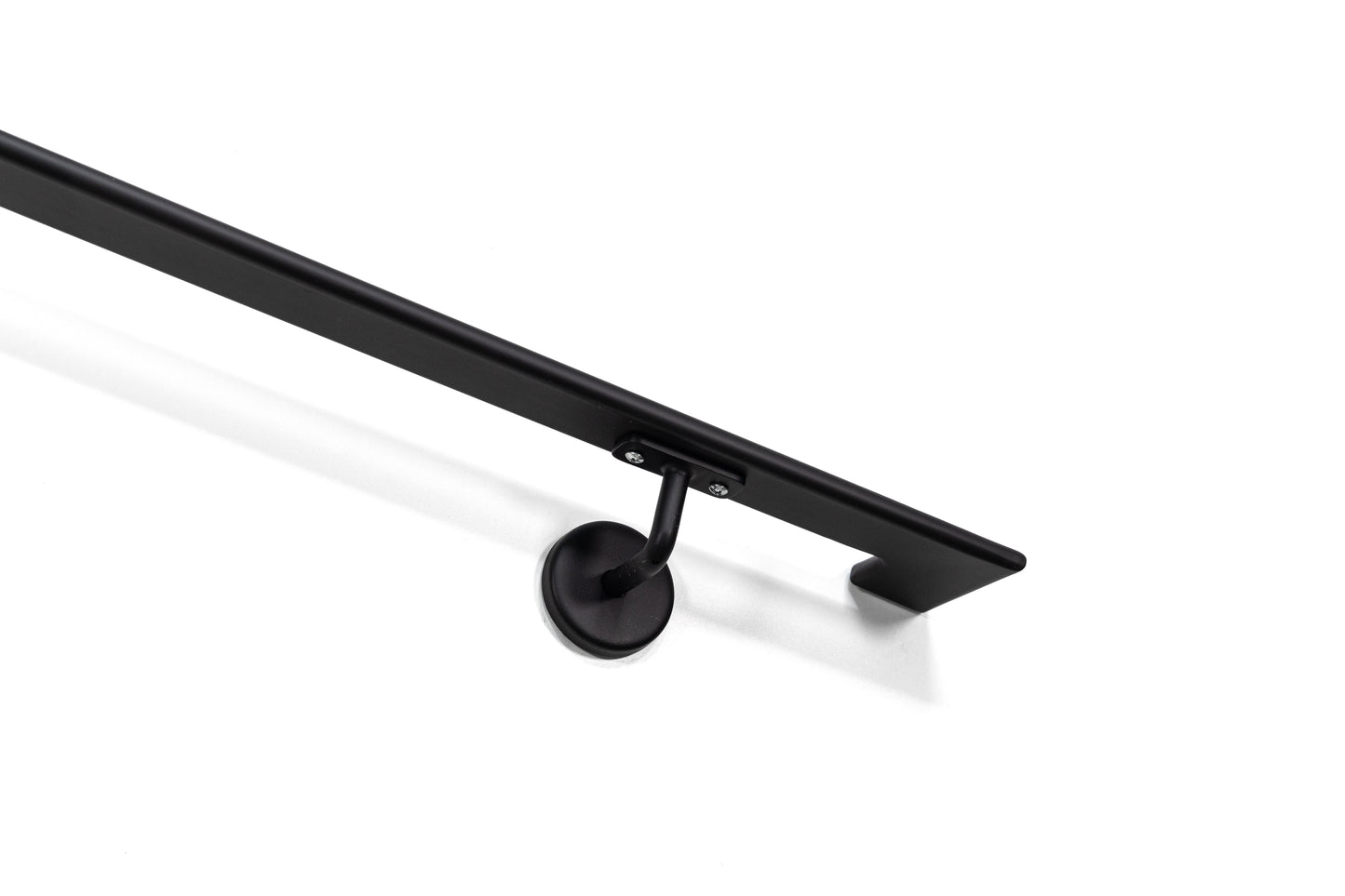

Stainless Steel Modern Round L Handrail Bracket Flat Top

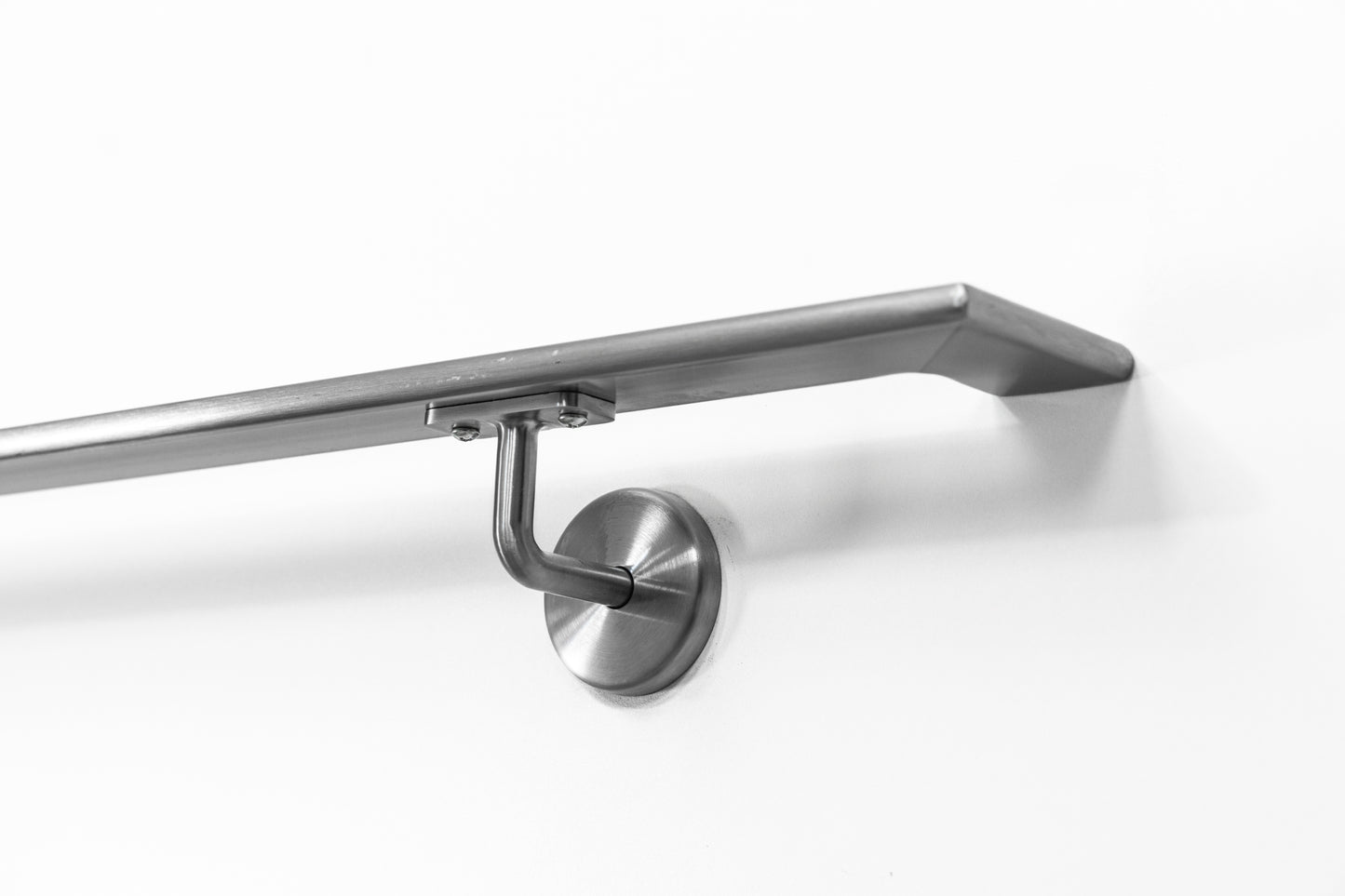

Our modern L handrail bracket is made of solid stainless steel that is finished to perfection. It is perfect to use with wood or metal handrails that have a modern design. It’s curved L shape makes it the safest of it’s kind because we have eliminated any sharp corners.

This specific bracket is made for flat handrails such as square or rectangle handrails ranging from 1" - 2" widths.

Order includes

• Stainless steel hardware for woods stud/ drywall attachment
• Stainless steel hardware for woods and metal handrail attachment
• Round Cover plate to hide screws attached to wall

Details

• Material- Stainless steel type 316 rust resistant
• Finish satin brushed nickel
• Standard handrail height is between 34" and 38" from the floor

Finish Options

• Standard- Brushed Stainless steel

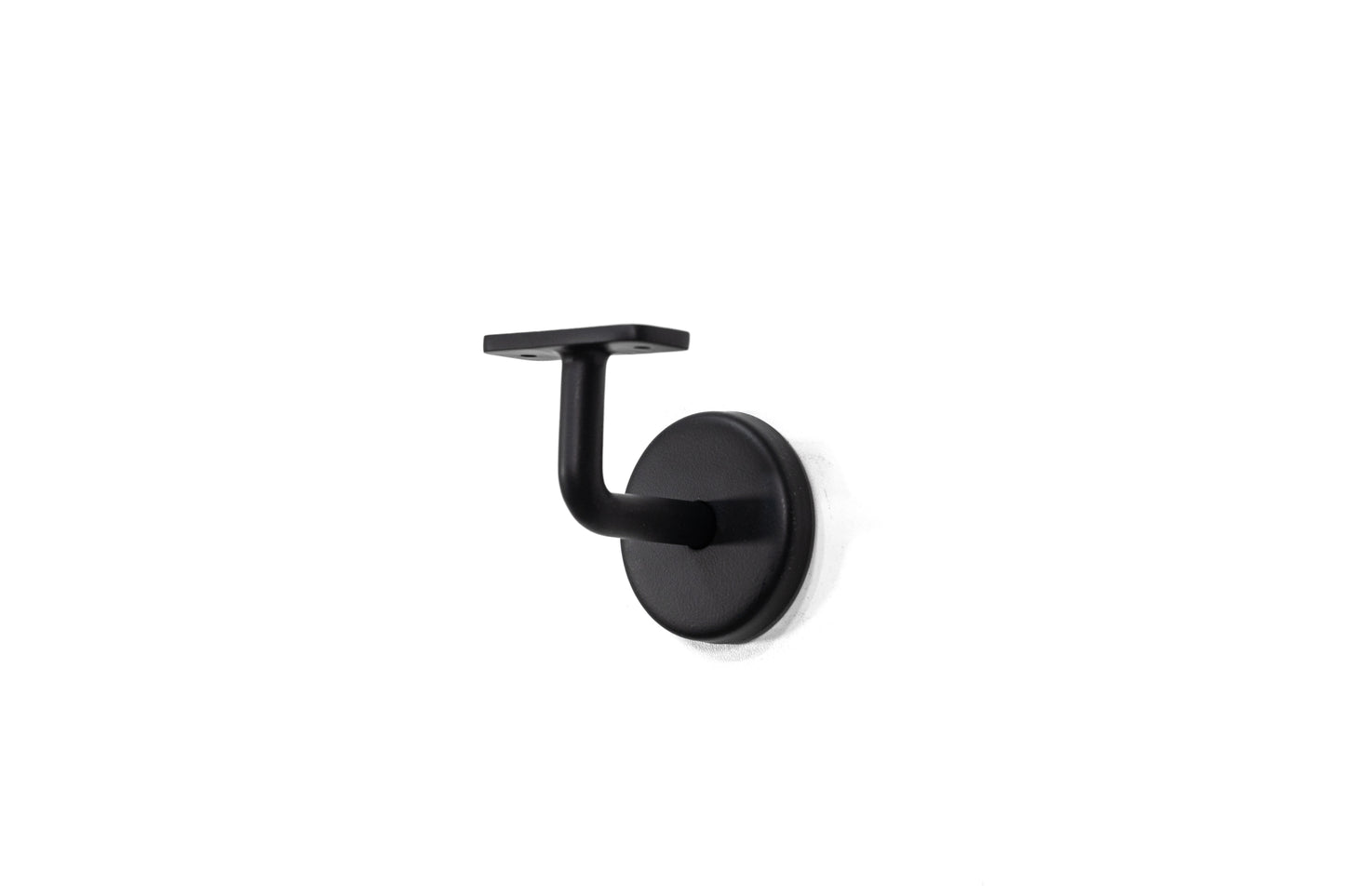

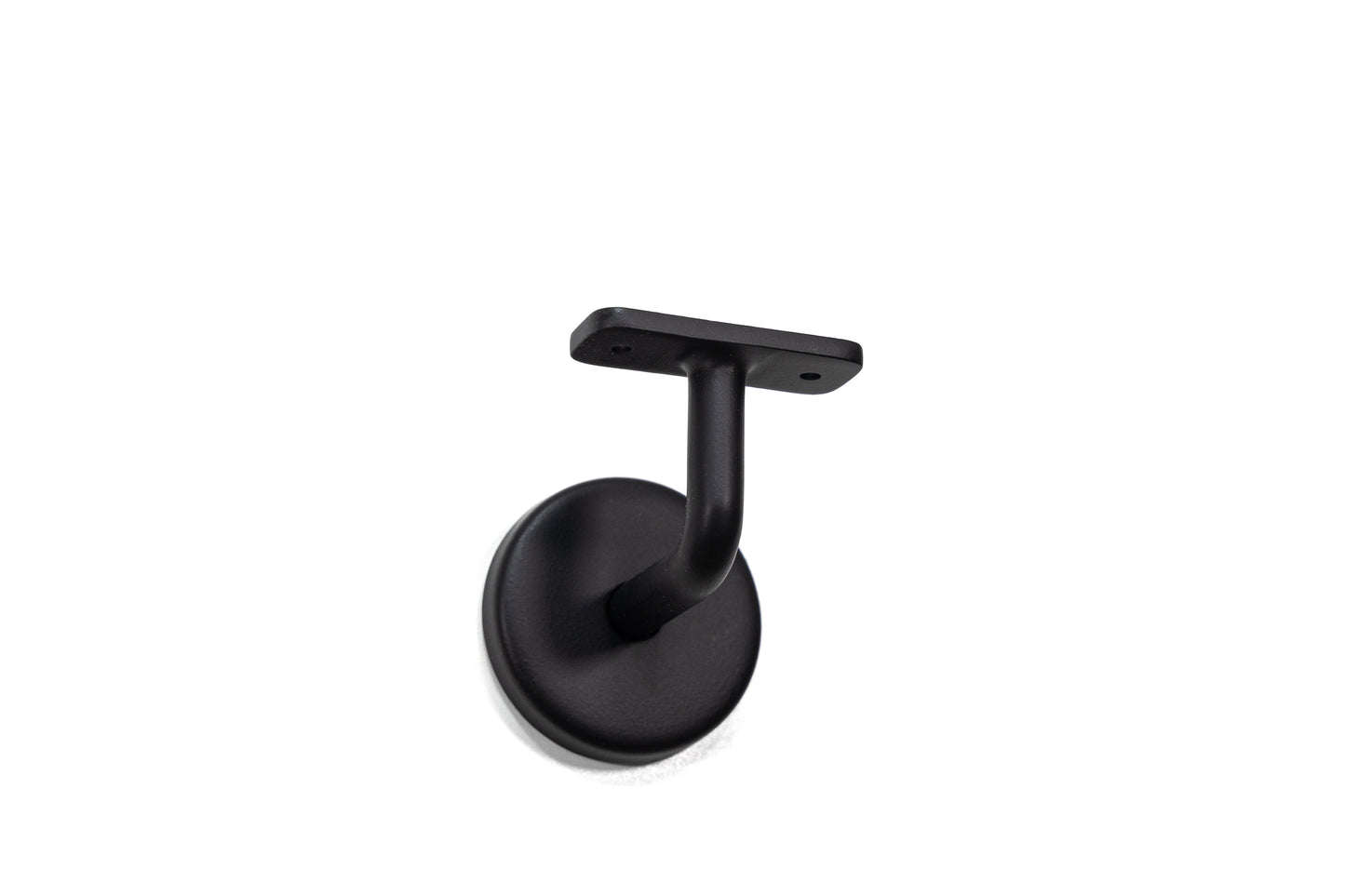

• Powder Coat Options - Matte Black or Semi Gloss Black
• Paintable Grey Primer

Our handrail brackets meet standard residential home building code safety requirements. Please make sure to check your local city building requirements before installation.

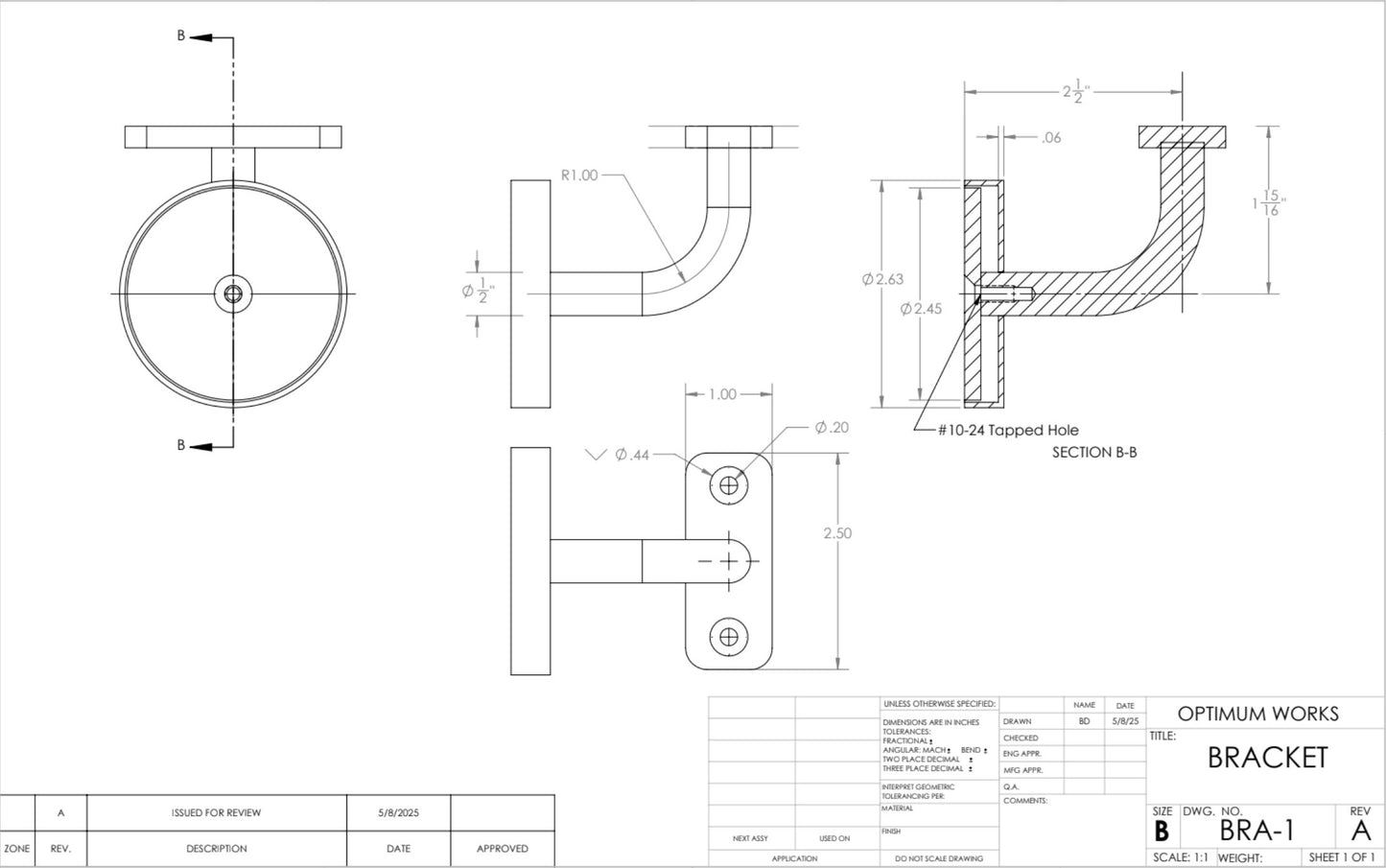

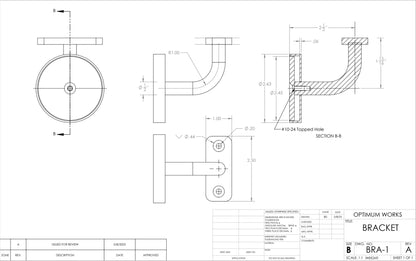

Bracket dimensions

• Width- 2-1/2" inches
• Height- 3" inches
• Projection- 3" inches
• O.C. Projection- 2-1/2" inches

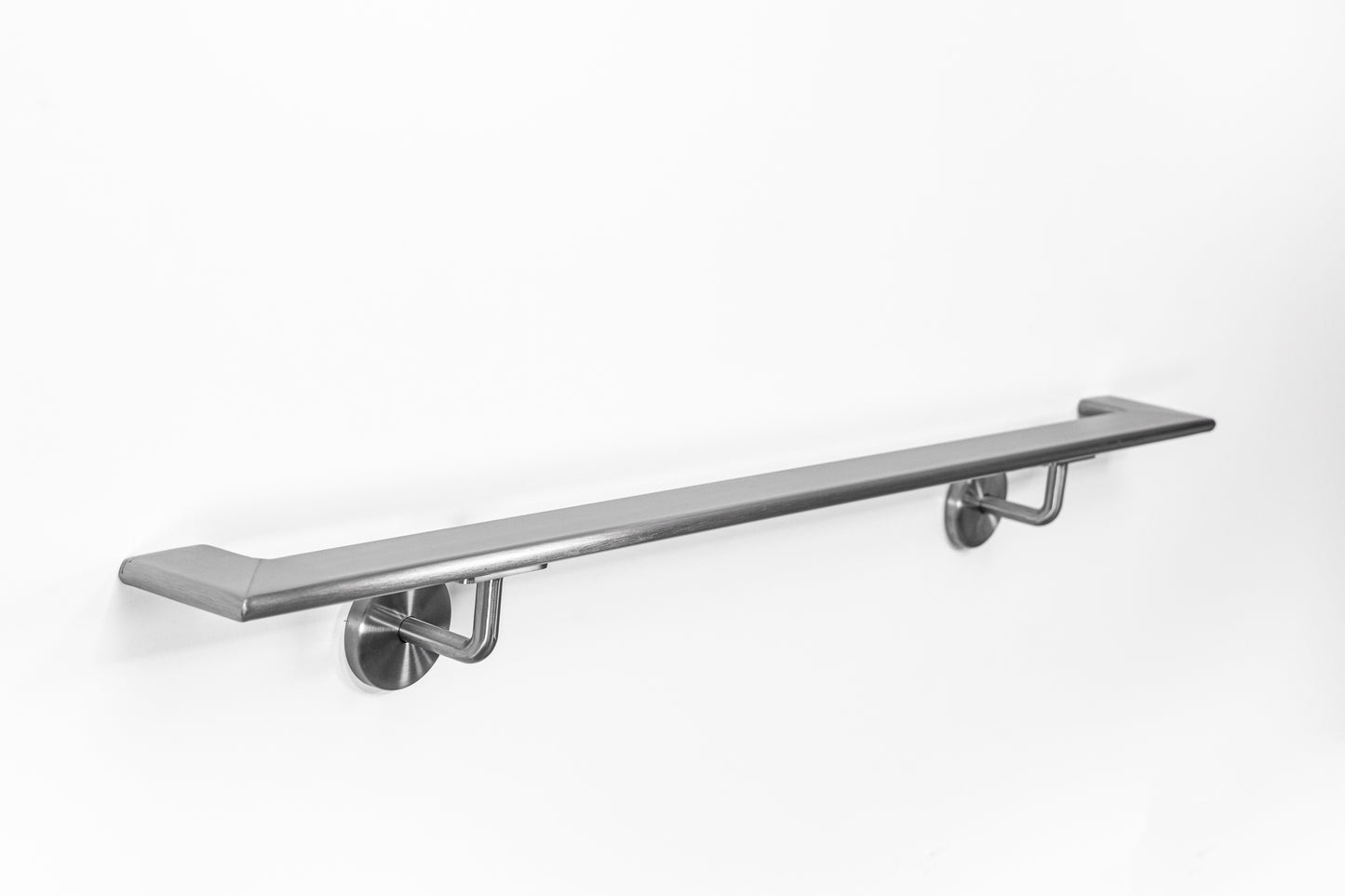

Amount of brackets recommended per handrail length

• 1' to 4’ = 2 brackets
• 5’ to 7’ = 3 brackets
• 7’6" to 9’ = 4 brackets
• 10’ to 12’ = 5 brackets
• 13’ to 16’ = 6 brackets
• 17’ to 21’ = 7 brackets
• 22’ to 24’ = 8 brackets
