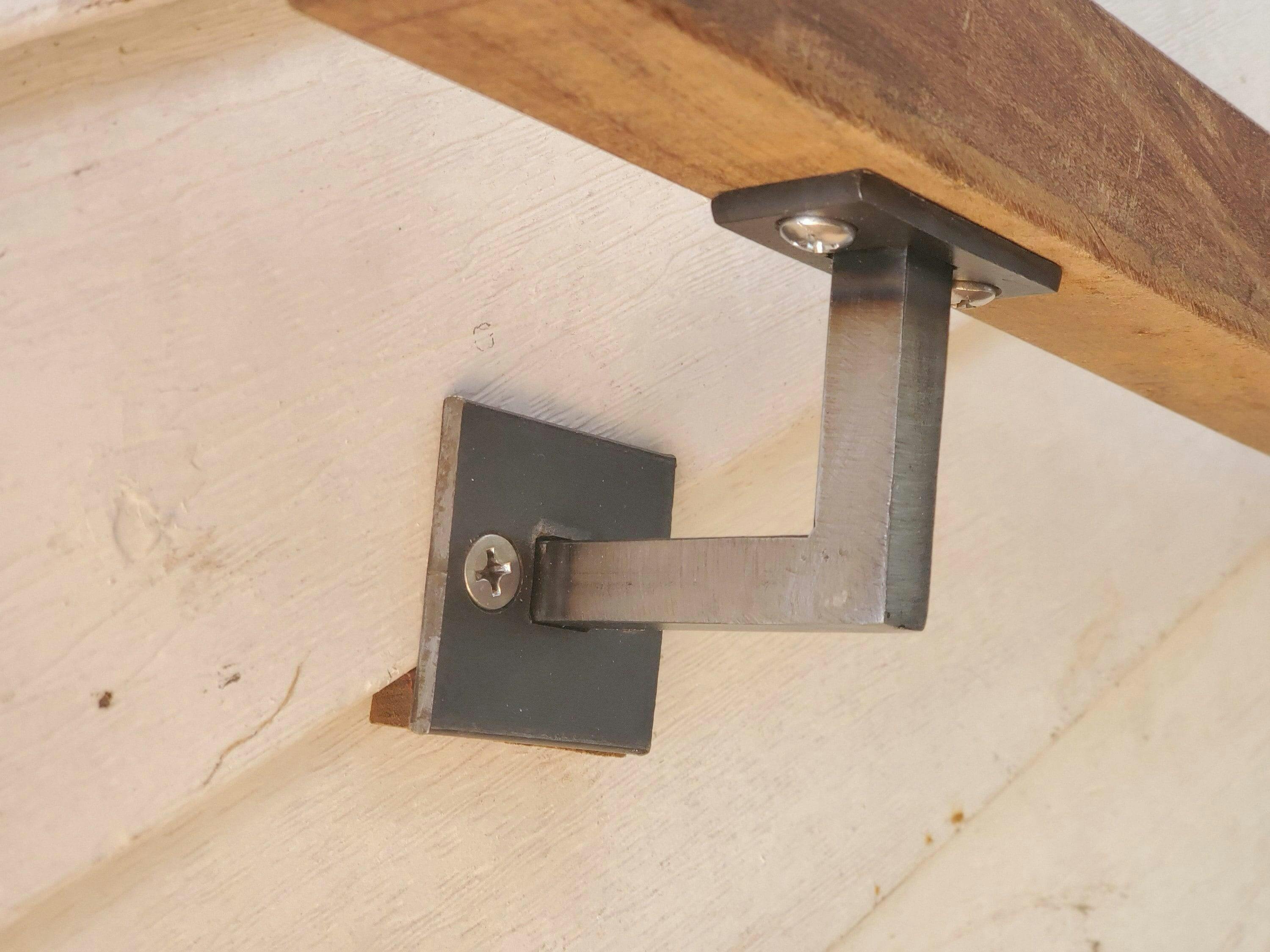

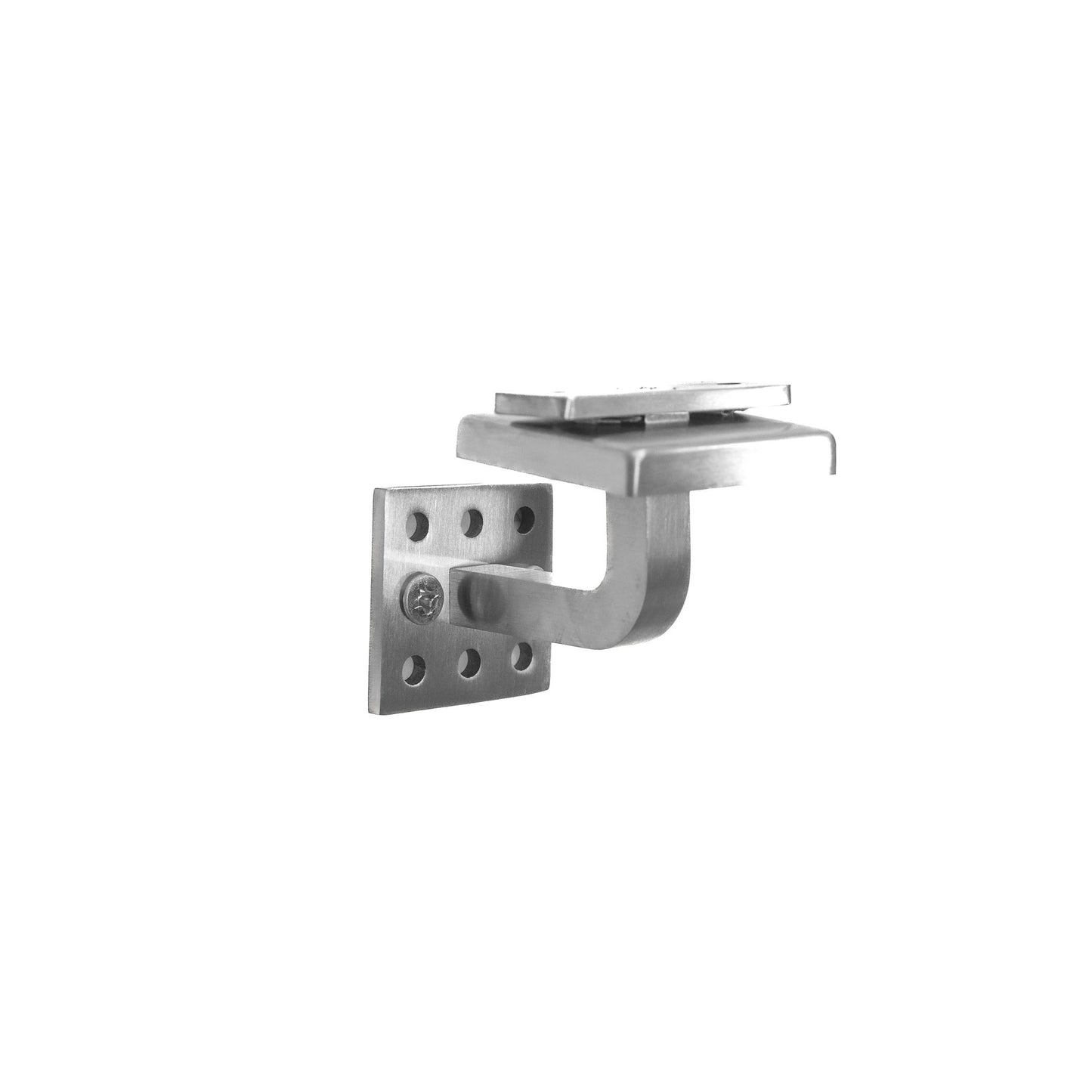

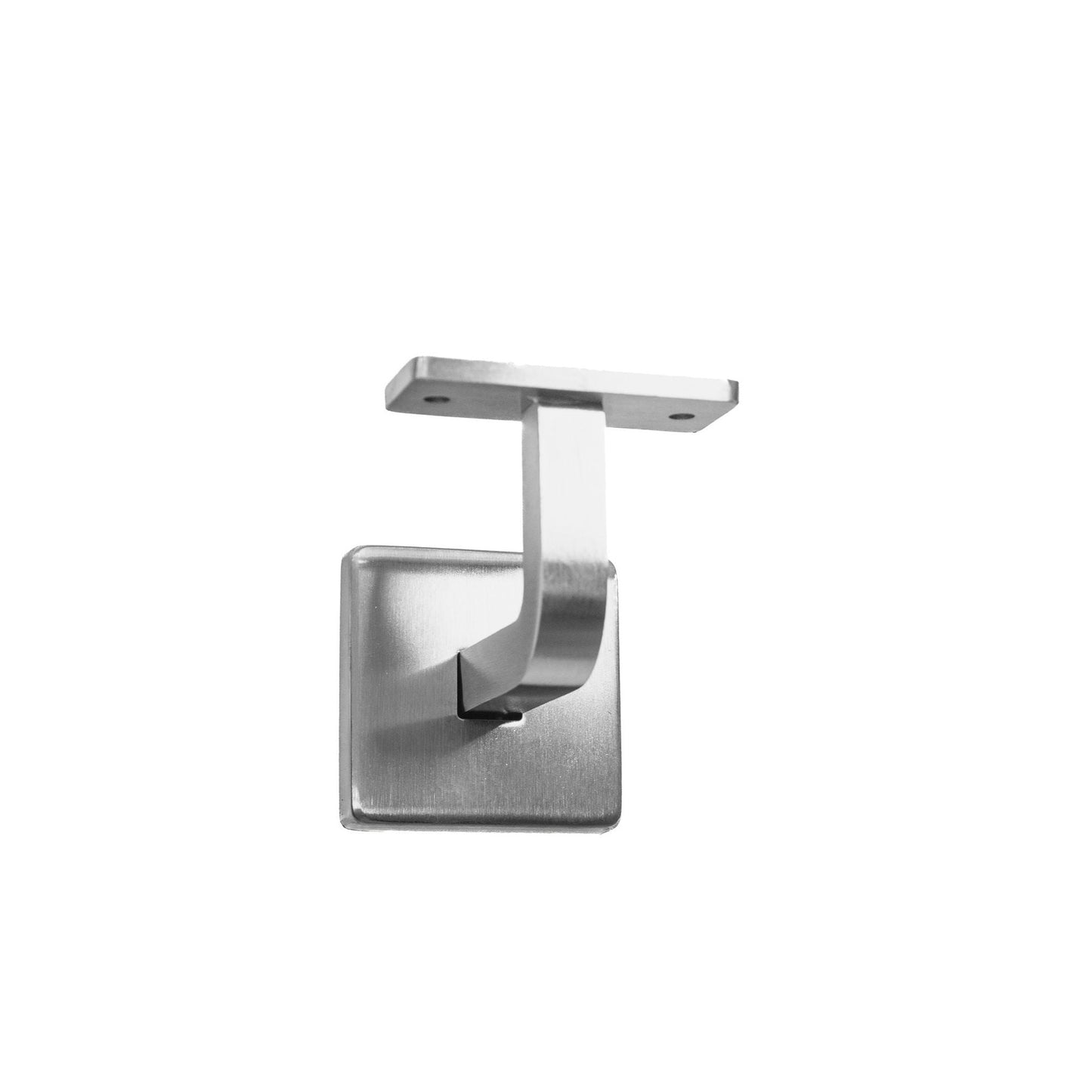

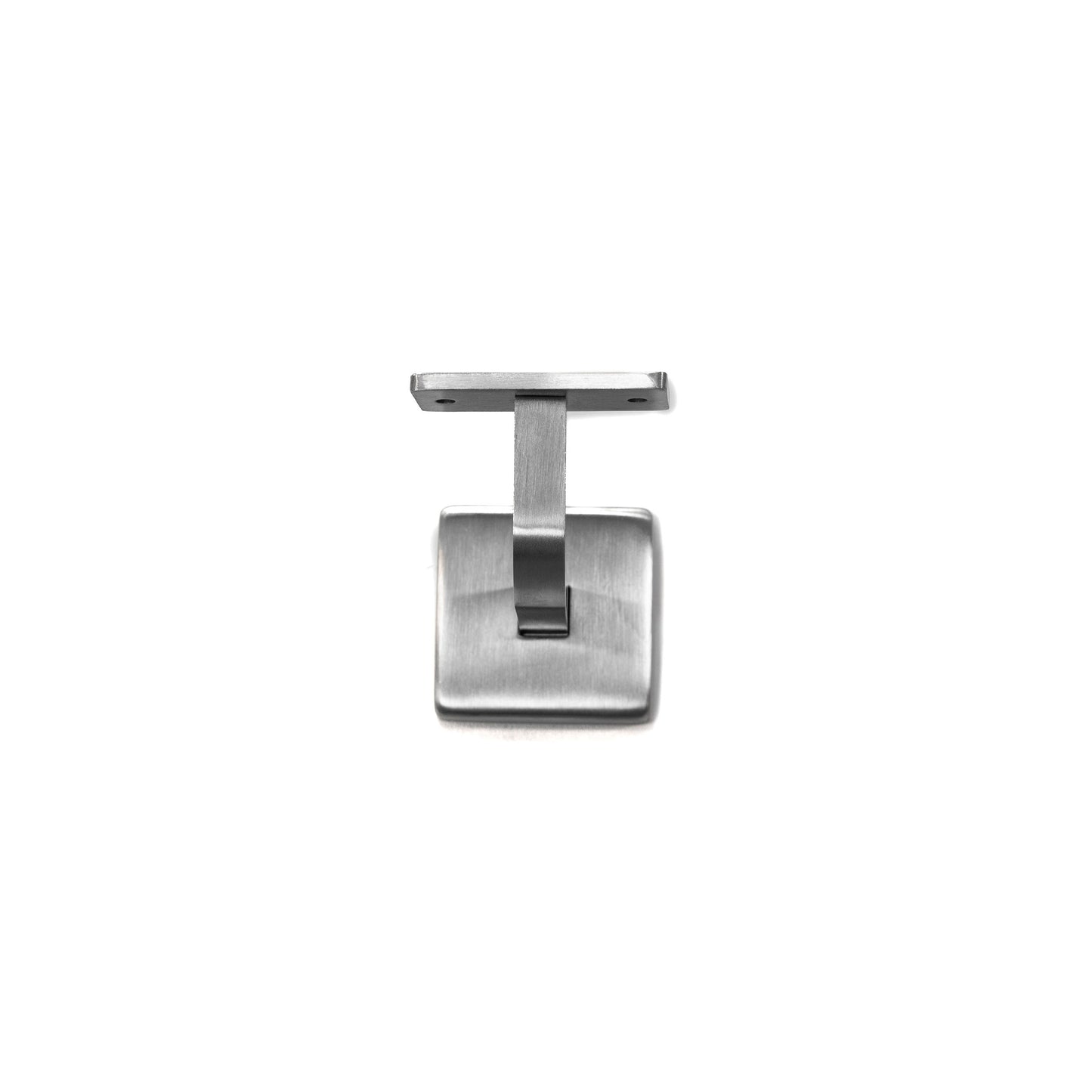

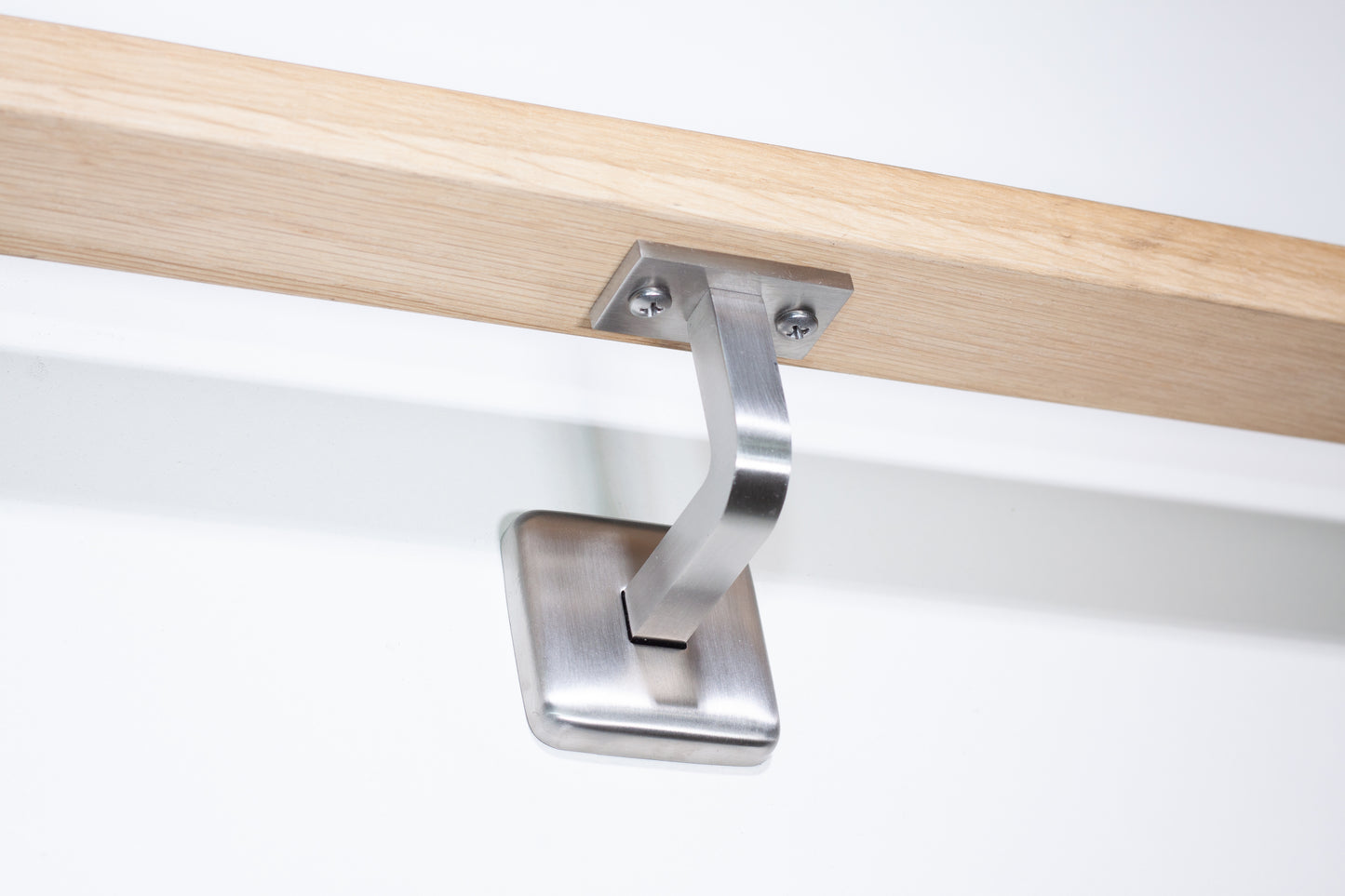

Our modern L handrail bracket is made of solid stainless steel that is finished to perfection. It is perfect to use with wood or metal handrails that have a modern design. It’s curved L shape makes it the safest of it’s kind because we have eliminated any sharp corners.

This specific bracket is made for flat handrails such as square or rectangle handrails ranging from 1\" - 2\" widths.

Order includes

Stainless steel hardware for woods stud/ drywall attachment
Stainless steel hardware for woods and metal handrail attachment
Cover plate to hide screws attached to wall

Details

Material- Stainless steel type 316 rust resistant
Finish satin brushed nickel
Standard handrail height is between 34\" and 38\" from the floor

Finish Options

Standard- Brushed Stainless steel

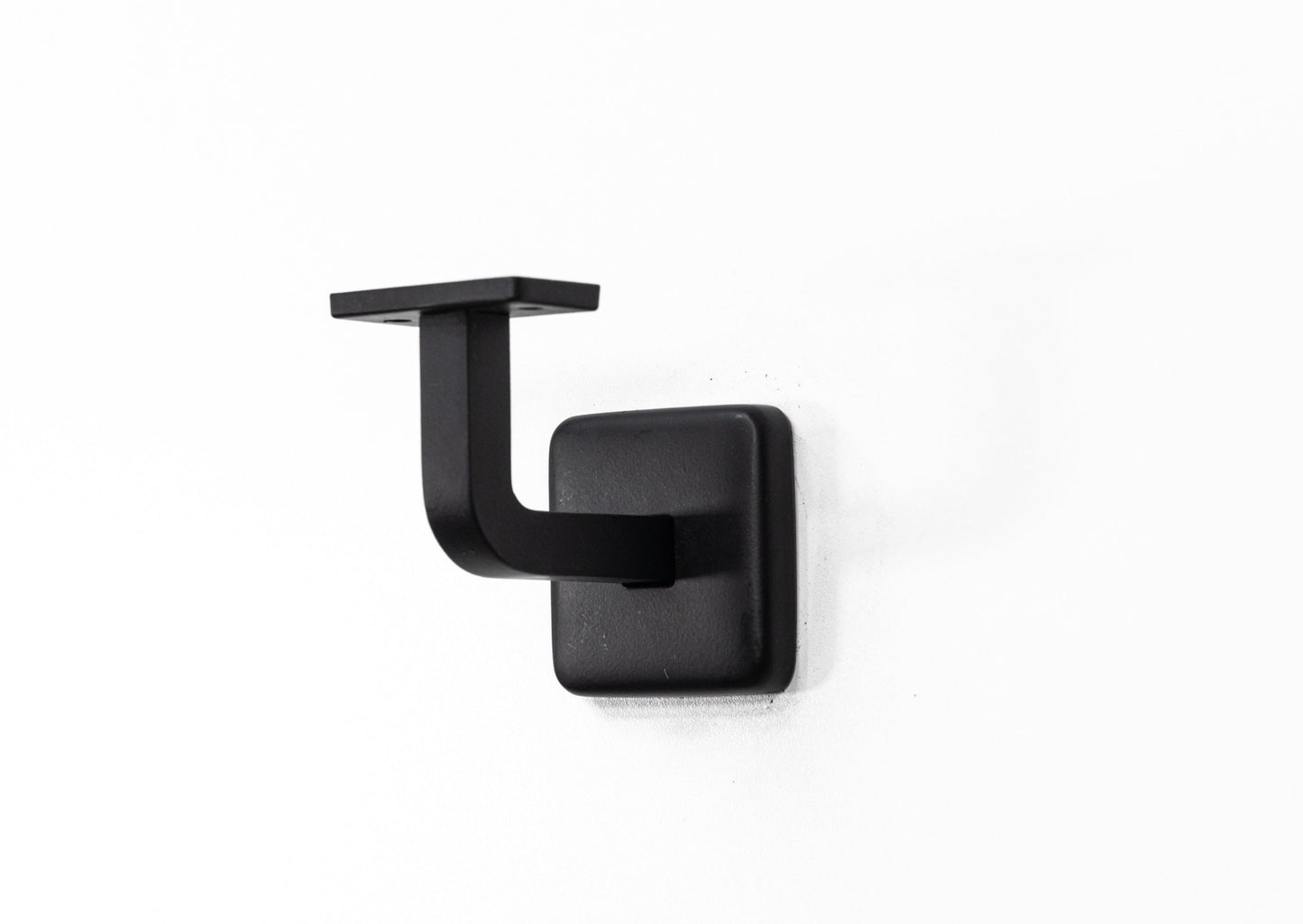

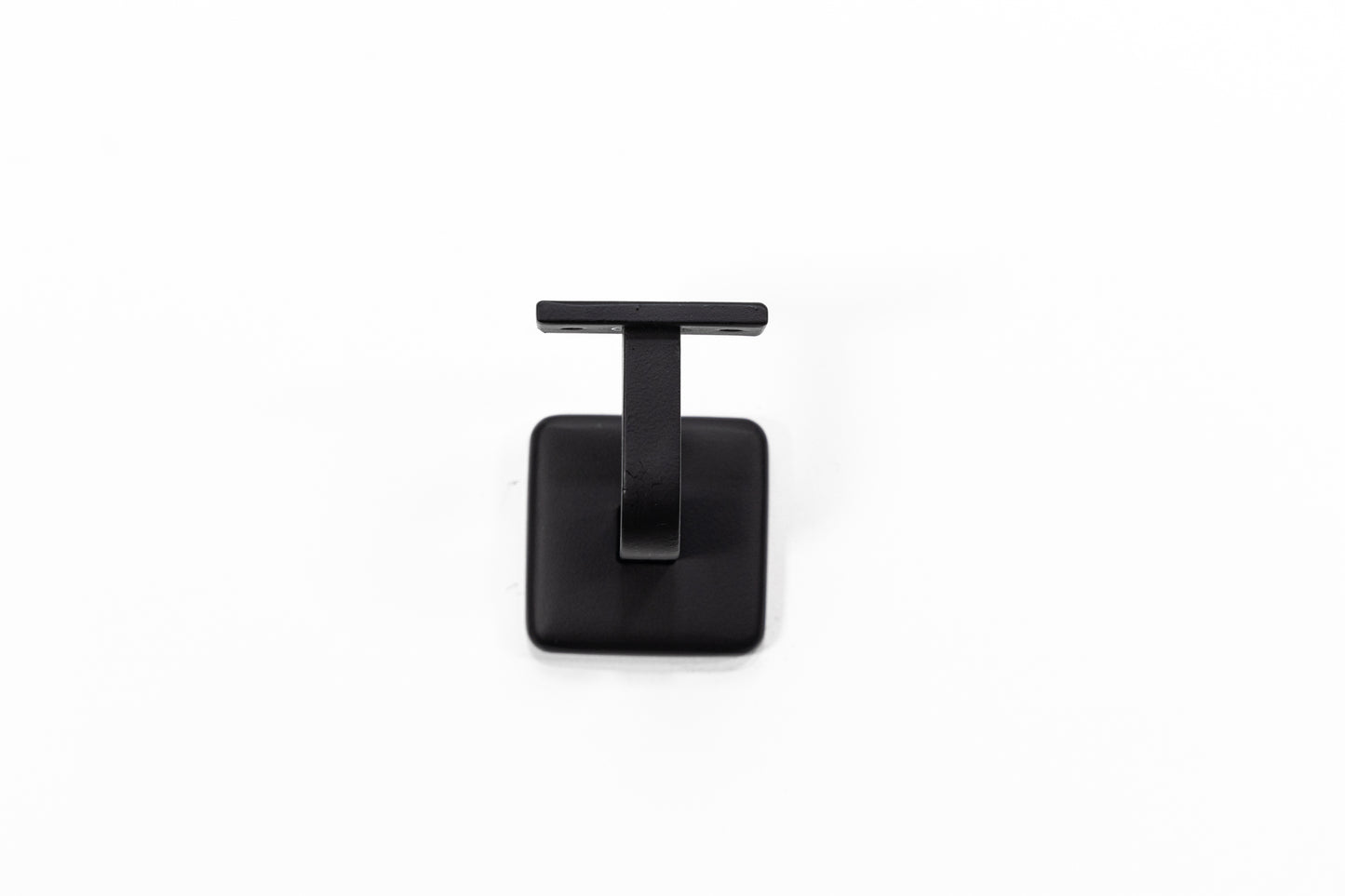

Powder Coat Options - Matte Black or Semi Gloss Black
Paintable Grey Primer

Our handrail brackets meet standard residential home building code safety requirements. Please make sure to check your local city building requirements before installation.

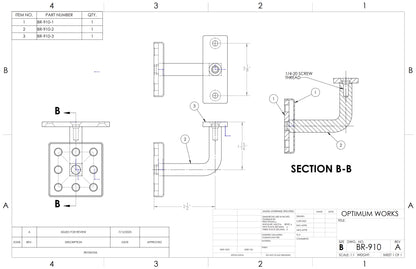

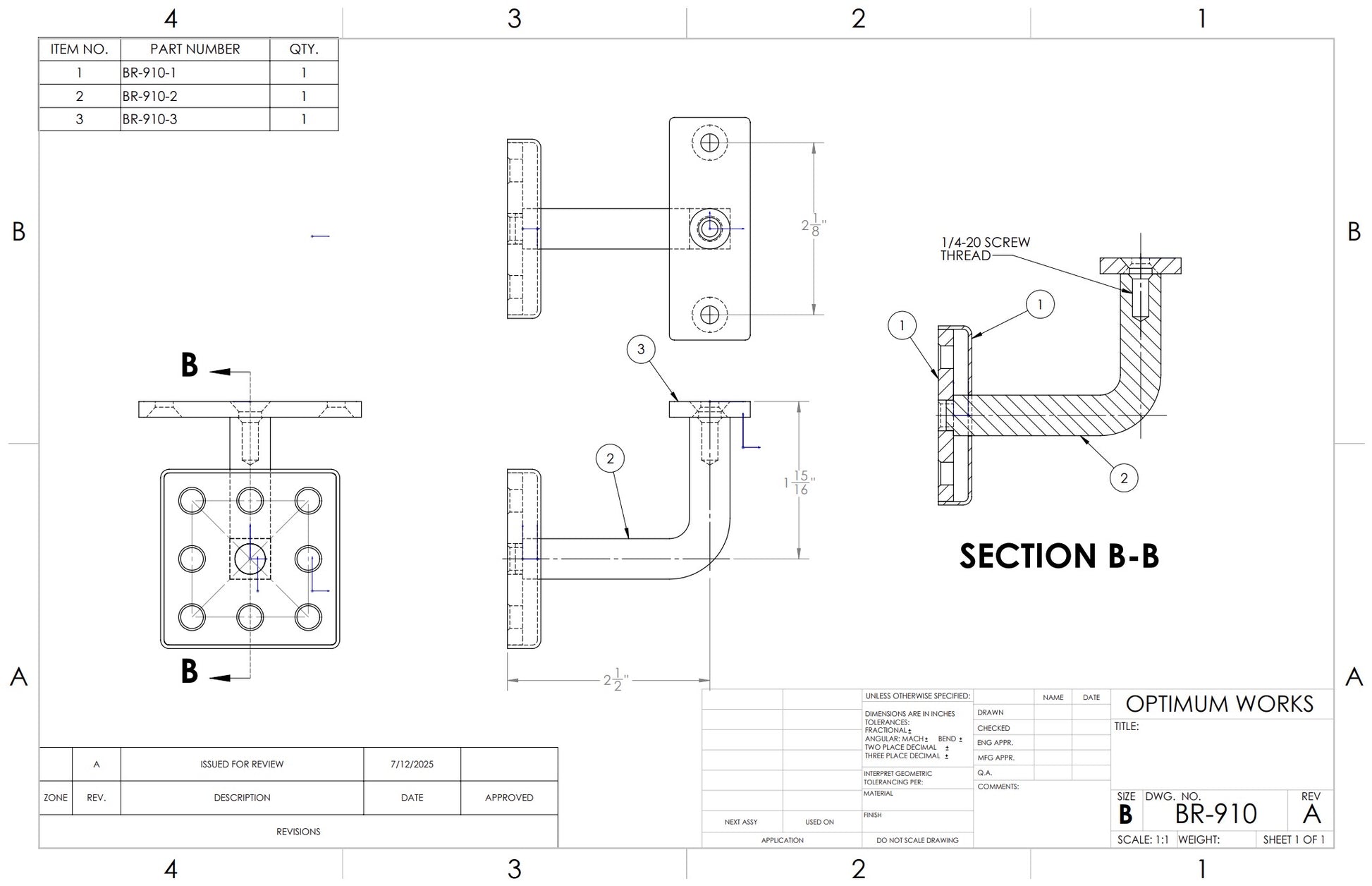

Bracket dimensions

Width- 2\" inches
Height- 3\" inches
Projection- 3\" inches

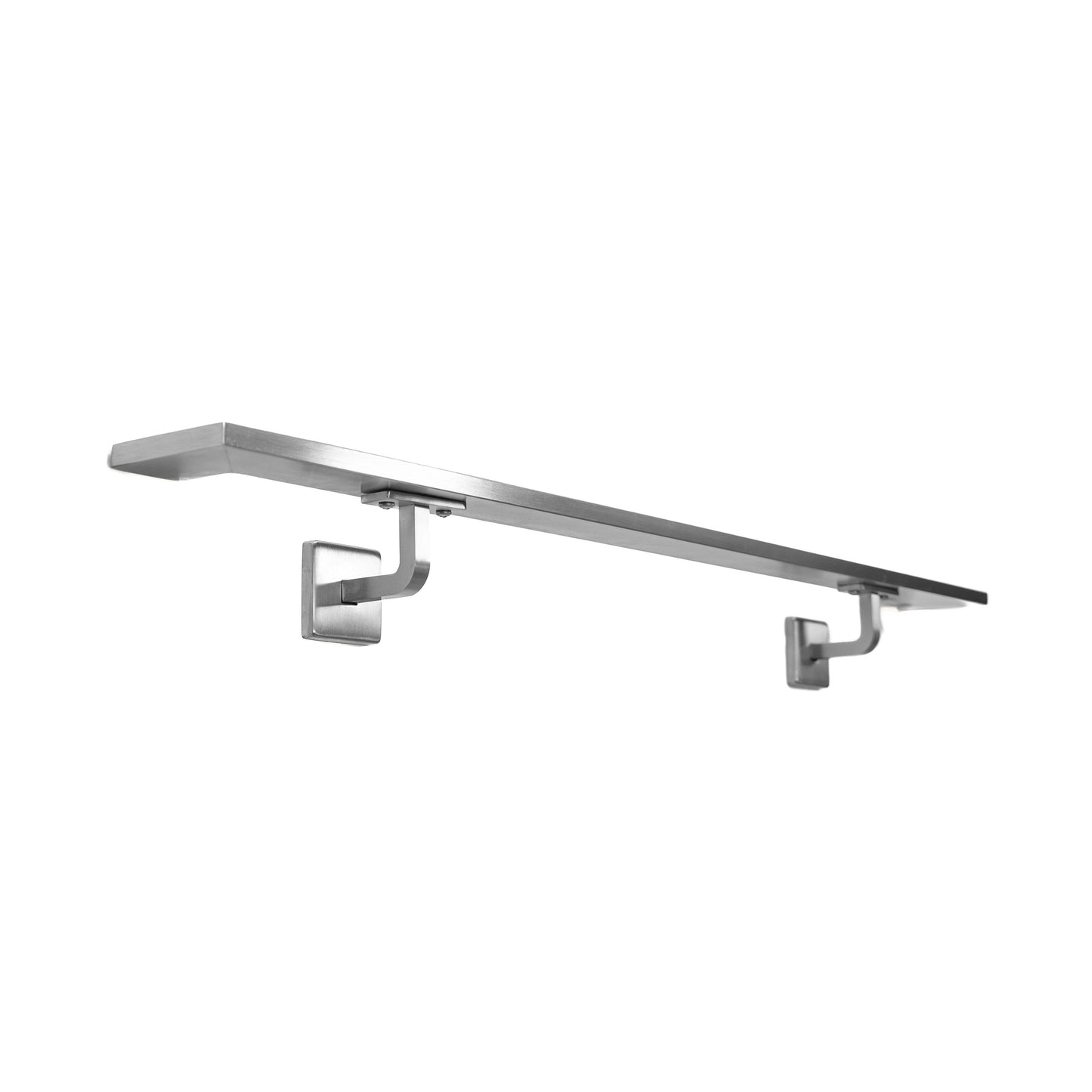

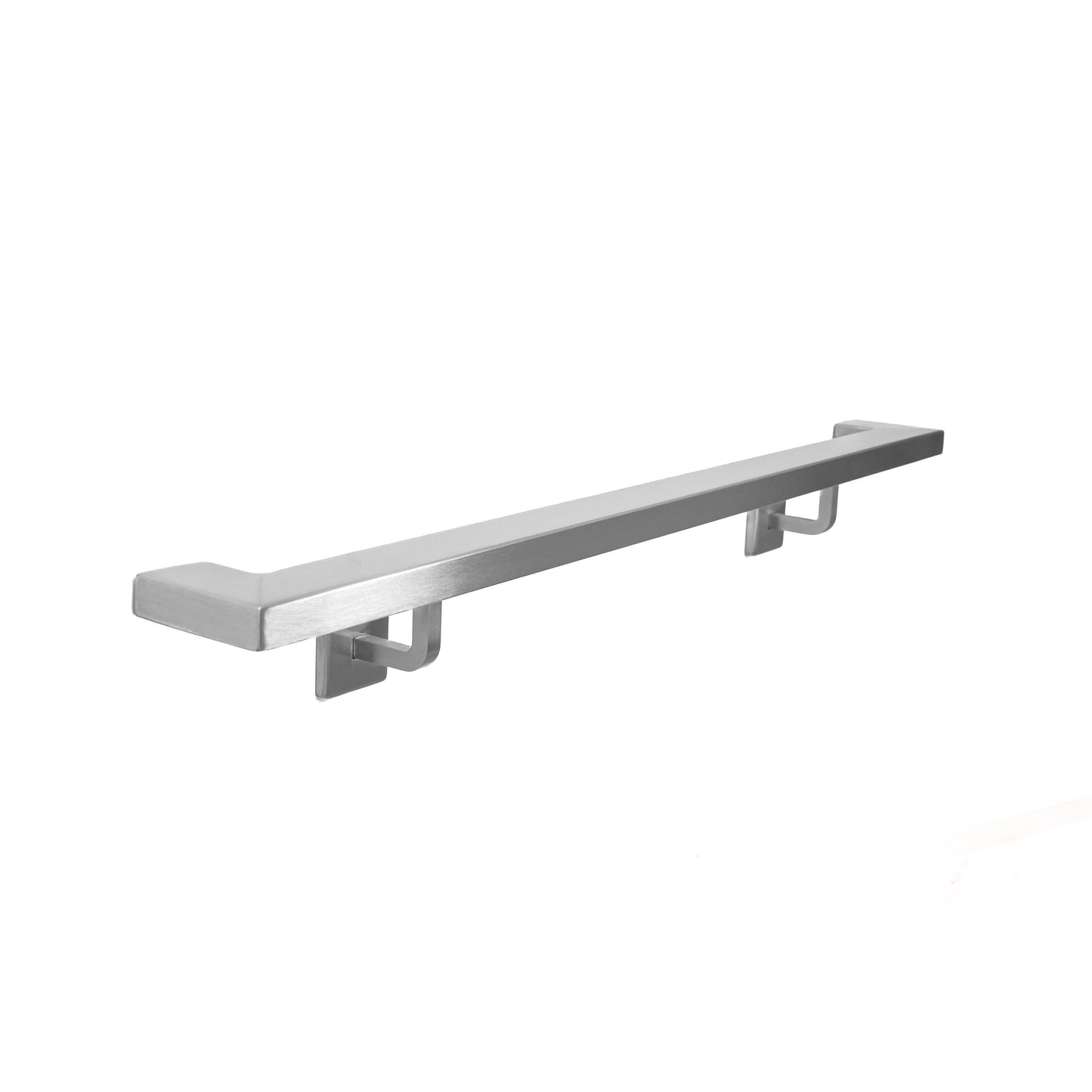

Amount of brackets recommended per handrail length

1' to 4’ = 2 brackets
5’ to 7’ = 3 brackets
7’6\" to 9’ = 4 brackets
10’ to 12’ = 5 brackets
13’ to 16’ = 6 brackets
17’ to 21’ = 7 brackets
22’ to 24’ = 8 brackets
