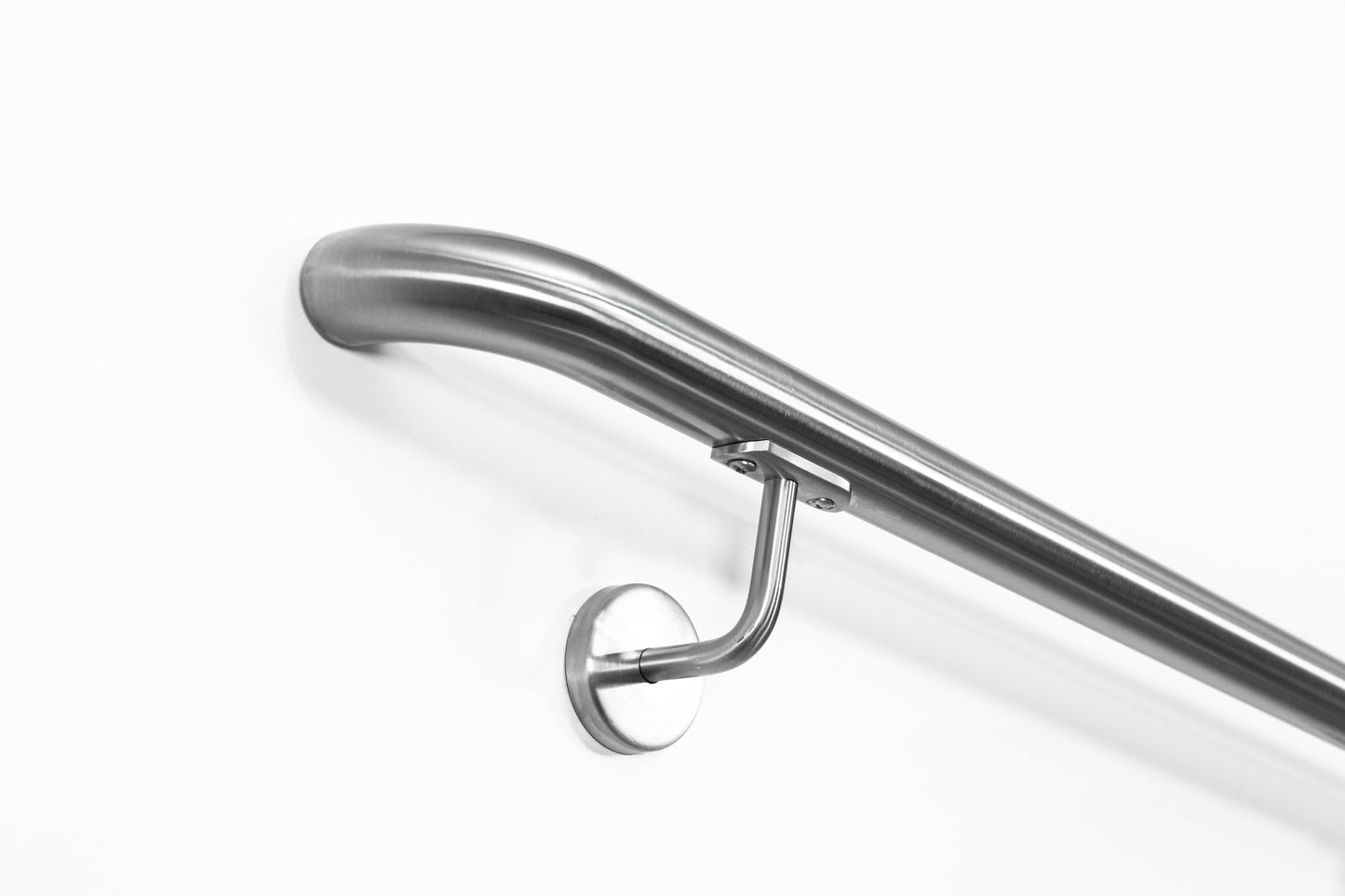

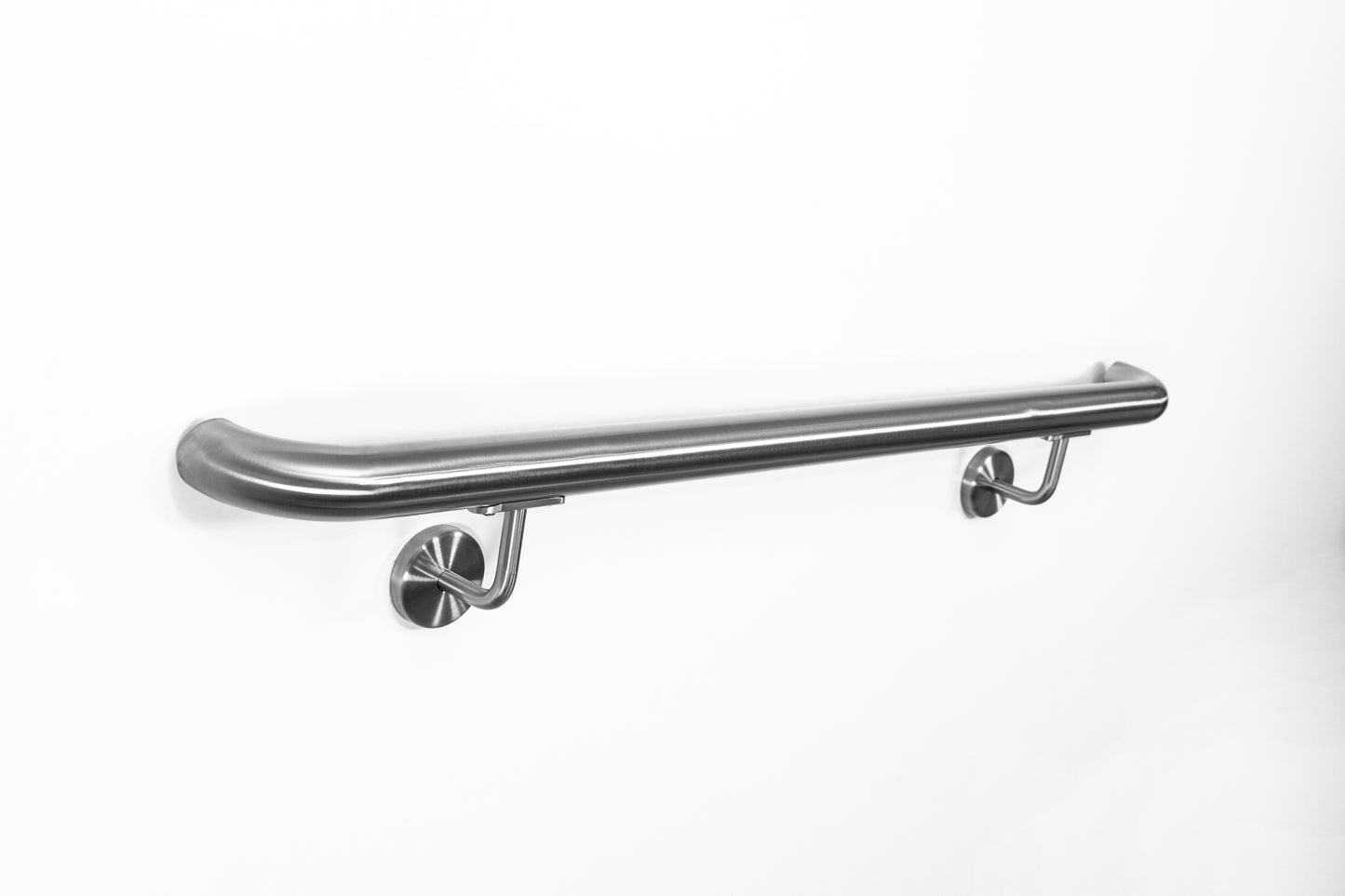

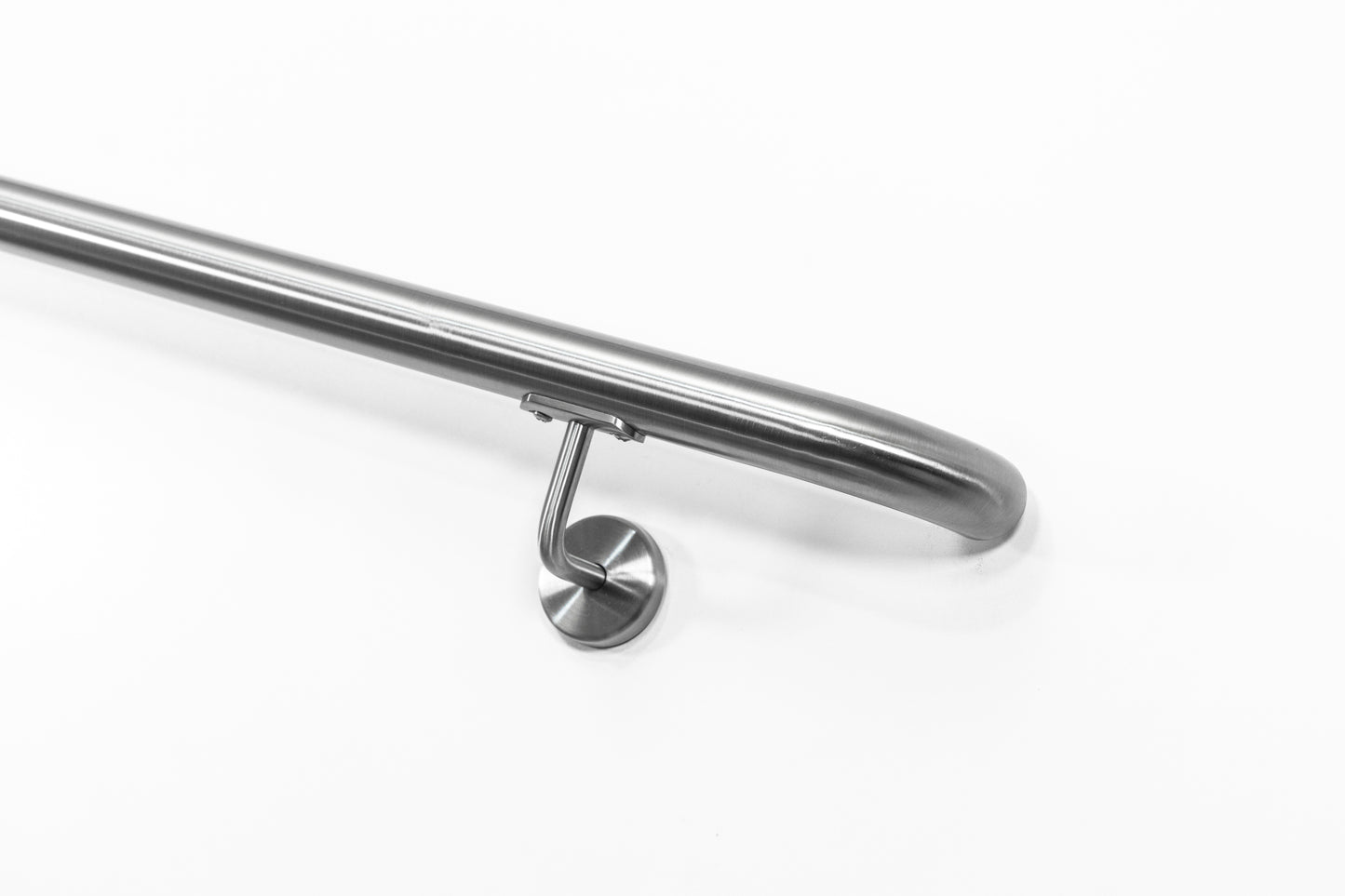

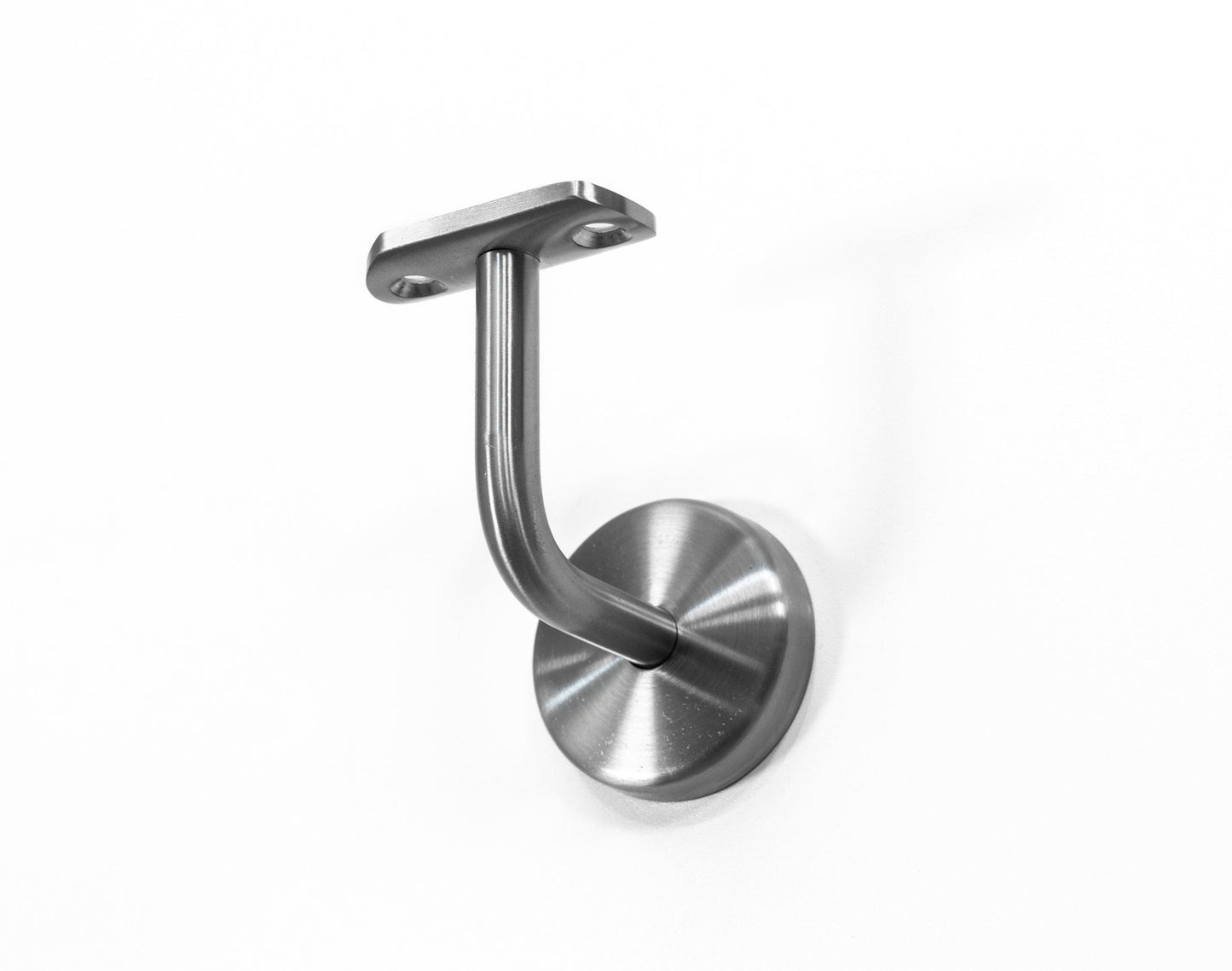

Round Stainless Steel Handrail Bracket for Round and Flat handrails

Our round stainless steel handrail bracket is the perfect bracket for a simple modern look. Its made specifically for round shaped handrails. The bracket includes a back cover plate to hide screws attached to the wall for a nice clean look.

A flat top accessory is available to make this brackets useful for flat top items.

This bracket is specifically made for round shaped handrails that vary from 1-1/4" to 1-5/8" diameter.

Order includes

• Stainless steel Round Handrail bracket
• Stainless steel Round Cover Plate
• Stainless steel screws for woods stud/ drywall attachment
• Stainless steel hardware for woods and metal handrail attachment

Details

• Material- Stainless steel type 316 rust resistant
• Finish Satin brushed nickel
• Optional Finishes- Powder Coats Matte black, Semi Gloss black
• Paintable Primer
• Standard handrail height is between 34" and 38" from the floor

Our handrail brackets meet standard residential home building code safety requirements. Please make sure to check your local city building requirements before installation.

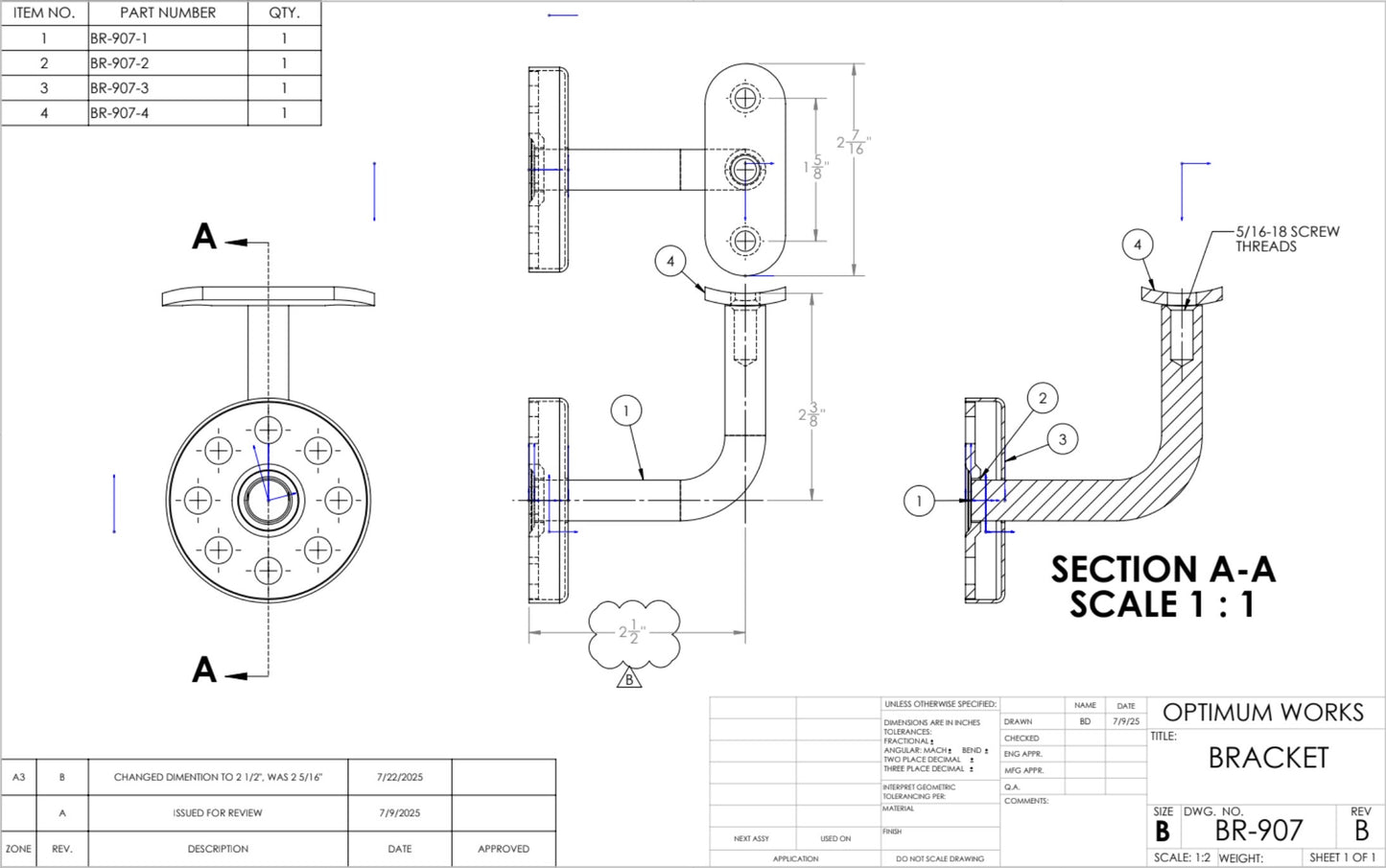

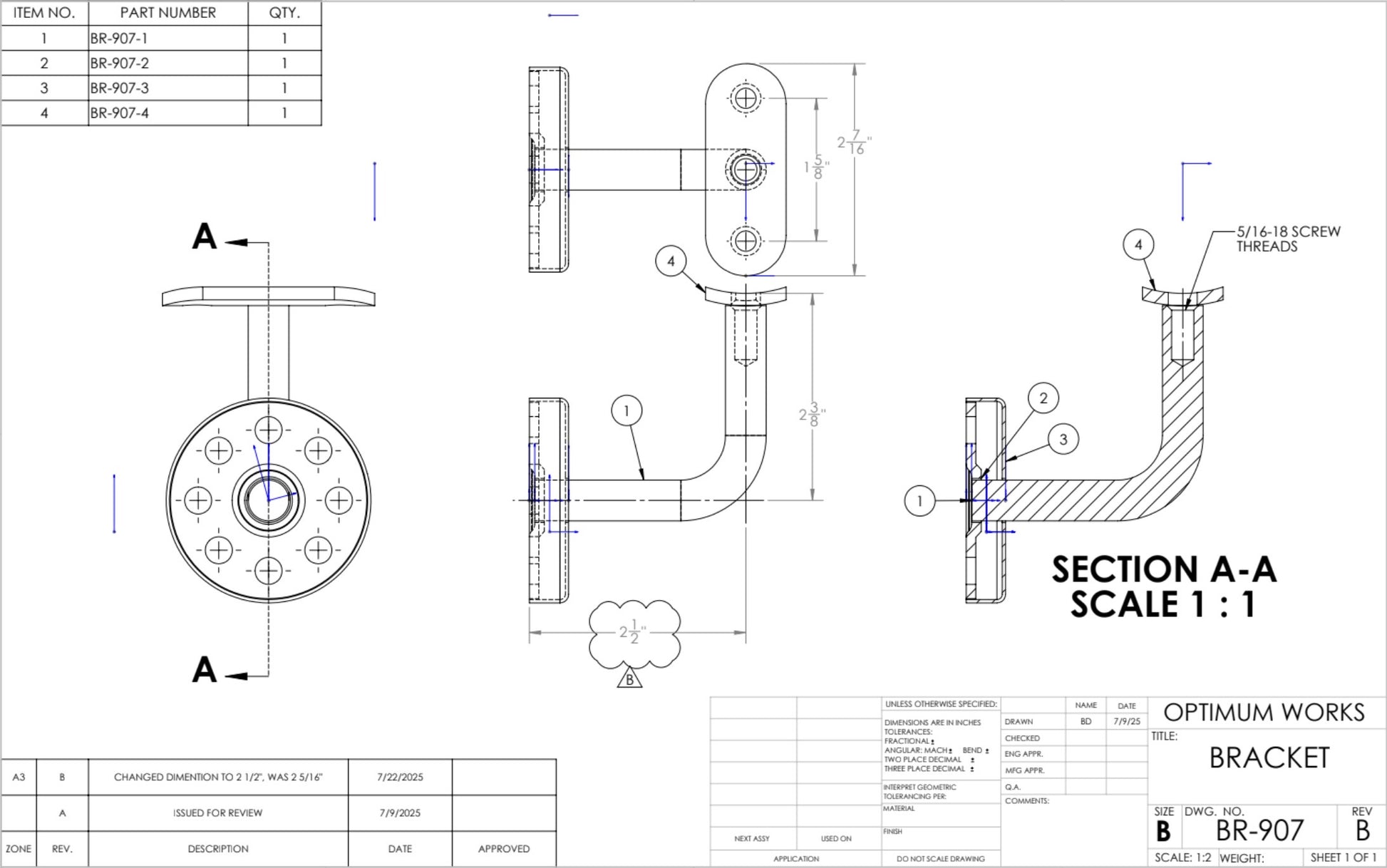

Bracket dimensions

• Width- 2" inches
• Height- 3-1/2" inches
• Projection- 3" inches
• OC Projection - 2-1/2" inches

Amount of brackets recommended per handrail length

• 1' to 4’ = 2 brackets
• 5’ to 7’ = 3 brackets
• 7’6" to 9’ = 4 brackets
• 10’ to 12’ = 5 brackets
• 13’ to 16’ = 6 brackets
• 17’ to 21’ = 7 brackets
• 22’ to 24’ = 8 brackets
